Mustang Light Covers (05-09) - Installation Instructions

Tools Required

Installation Time: 30 Mins

Installation


Fog Light Covers Install:
  1. Fog light covers have a press-fit into the opening of your stock Ford grille. Simply place the covers into the openings of the grille and press firmly to fully seat them as shown.

    Mustang Light Covers 05-09 1

    Mustang Light Covers 05-09 2

Turn Signal Light Cover Install:

  1. Using the supplied alcohol prep pads, thoroughly clean the areas on the turn signals where adhesive will affix to.

    Mustang Light Covers 05-09 3

  2. Peel backing from the adhesive tape and place cover over turn signal lens, making sure that the entire lens is covered. Once in proper position, firmly press down on cover to full seat the adhesive. Repeat instructions for opposite side cover to complete the installation.

    Mustang Light Covers 05-09 4

Third Brake Light Cover Install:

  1. Using the supplied alcohol prep pad, thoroughly clean the third brake light lens where the adhesive will affix to.

    Mustang Light Covers 05-09 5

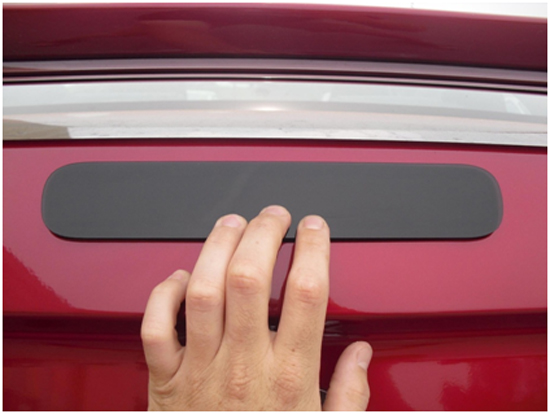

  2. Peel backing from adhesive tape and place cover over the third brake light. When cover is properly aligned, firmly press down to fully seat the adhesive.

    Mustang Light Covers 05-09 6

Decklid Panel:

  1. Using the supplied alcohol prep pads, thoroughly clean the decklid where the adhesive will affix to.

    Mustang Light Covers 05-09 7

  2. Peel backing from adhesive and place the cover over the decklid, using the center emblem as a guide.

    Mustang Light Covers 05-09 8

  3. Once the panel is centered and the edges are covering all painted surfaces of the decklid, firmly press down on all areas of the panel to fully seat the adhesive.

    Mustang Light Covers 05-09 9

Installation instructions provided by Manufacturer.
