Mustang Light Covers (94-98) - Installation Instructions

This Mustang Parts Installation Guide Works For

Smoked Headlight Covers (94-98 All)DOWNLOAD PDF

Tools Required

Installation Time: 30 Mins

Installation


Headlight Covers Install:
  1. Tuck the bottom edge of the light cover between the bumper cover and the bottom of the headlight housing as shown:

    Mustang Smoked Light Covers 94-98 1

  2. Push the top of the light cover towards the top of the light and lift the upper tab over the headlight housing as shown:

    Mustang Smoked Light Covers 94-98 2

  3. Once the tab is over the housing, push the cover back towards the light to fully seat the tab as shown:

    Mustang Smoked Light Covers 94-98 3

Tail Light Cover Install:

  1. Using the supplied Alcohol Prep Pads, thoroughly clean the area where the Velcro backing will contact the light housing.

    Mustang Smoked Light Covers 94-98 4

  2. Peel the backing from the Velcro tabs as shown:

    Mustang Smoked Light Covers 94-98 5

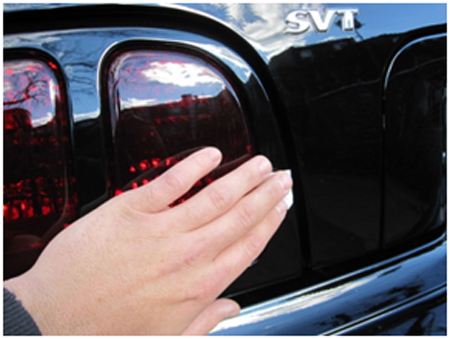

  3. Place the cover over the light housing carefully to align it, but do not press down yet. Once the cover is centered and properly aligned, press down firmly to fully seat the adhesive. Repeat for opposite side to complete the installation.

    Mustang Smoked Light Covers 94-98 6


Fog Light Cover Install:
  1. Tuck the bottom edge of the light cover under the fog light as shown:

    Mustang Smoked Light Covers 94-98 1

  2. Push the top edge of the light cover over the top of the fog light as shown. Repeat for opposite side to complete the installation.

    Mustang Smoked Light Covers 94-98 8

Installation instructions provided by Manufacturer.
