How to Install an Accel Super Coil On Plug for 1999-2004 Mustang Cobra and Mach 1

This Mustang Parts Installation Guide Works For

Accel Super Coil On Plug Kit (99-04 Cobra, Mach 1)DOWNLOAD PDF

Tools Required

  • 8mm Socket
  • 10mm Socket
  • Ratchet
  • Flathead Screwdriver
  • Adjustable Wrench (optional)
  • Dielectric Grease
Installation Time: 45 Mins

Installation

Installation

  1. Set the parking brake and raise the hood.
  2. Disconnect the ground from the battery. (mine was 8mm, yours may differ)

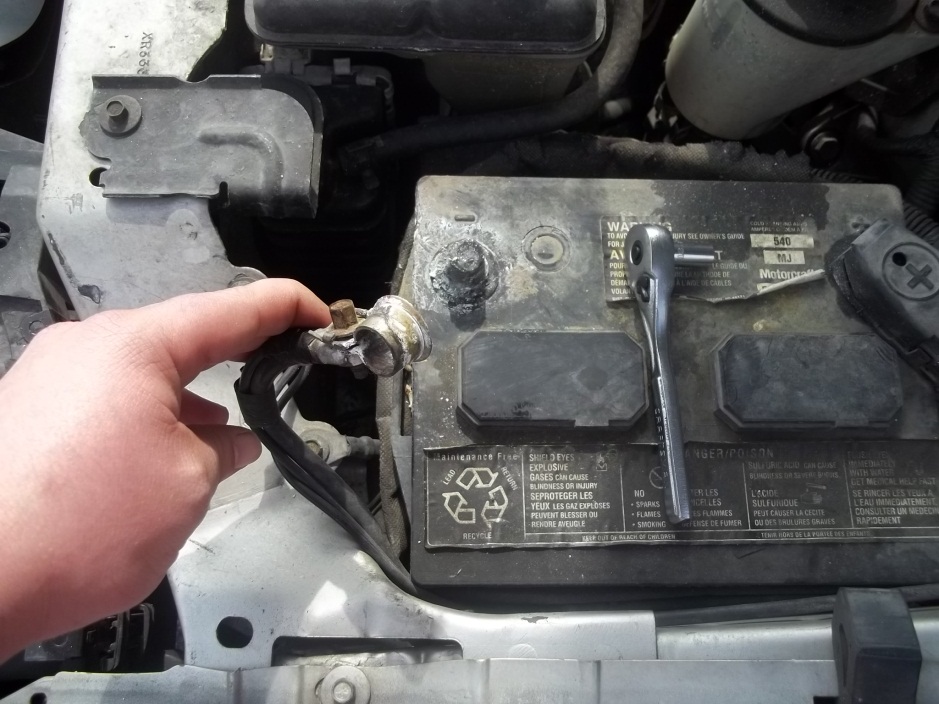

    Guide 37223 Picture 01

  3. Locate mass air flow sensor and remove the electrical connector from it by pushing down on the clip and pulling back.

    Guide 37223 Picture 02

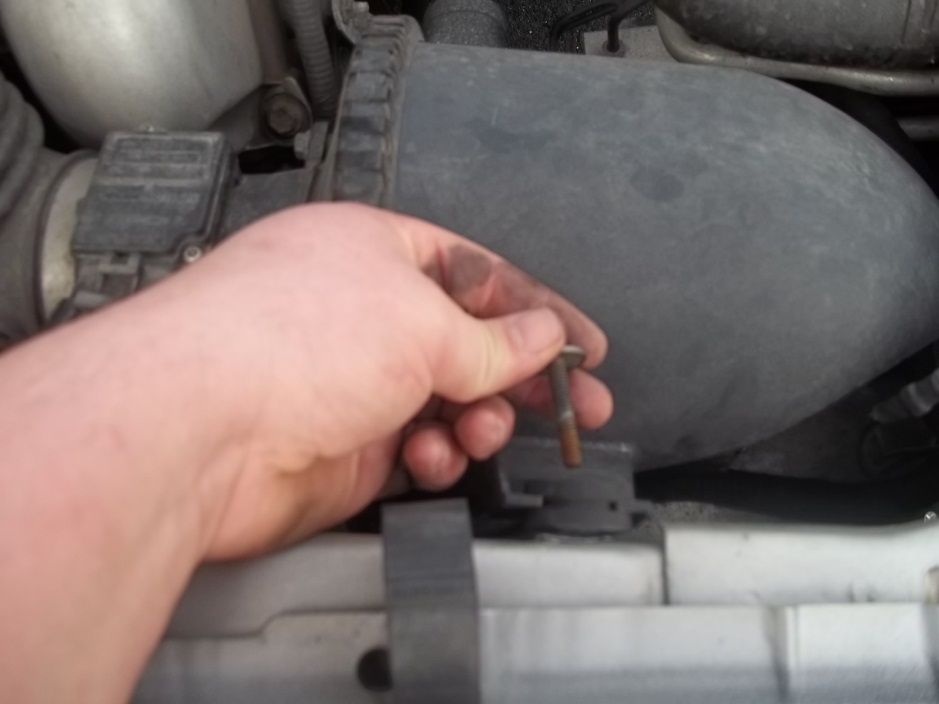

  4. Remove the 8mm bolt on the fender wall holding the air filter box.

    Guide 37223 Picture 03

  5. Remove the vacuum line from the valve cover by grabbing at the base and gently pulling up.

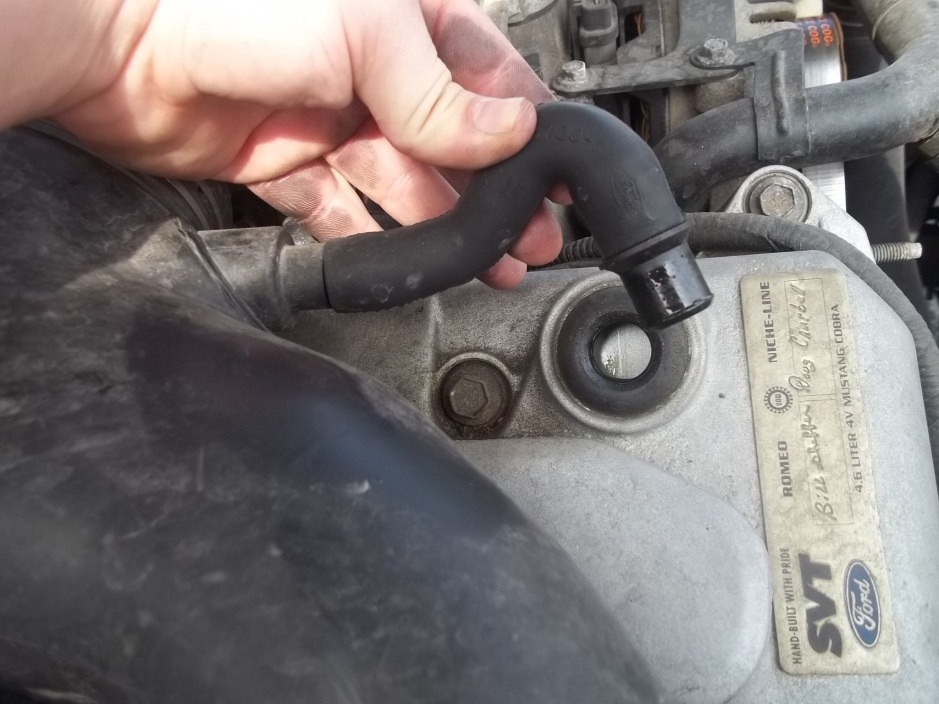

    Guide 37223 Picture 04

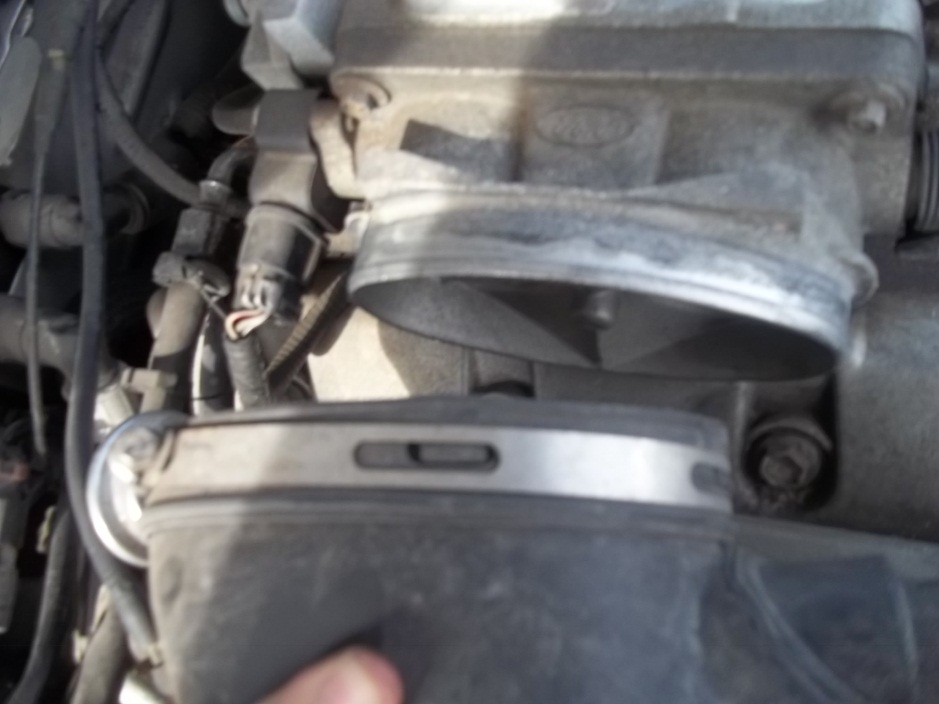

  6. Use a flathead screwdriver to loosen the band clamp from the throttle body.

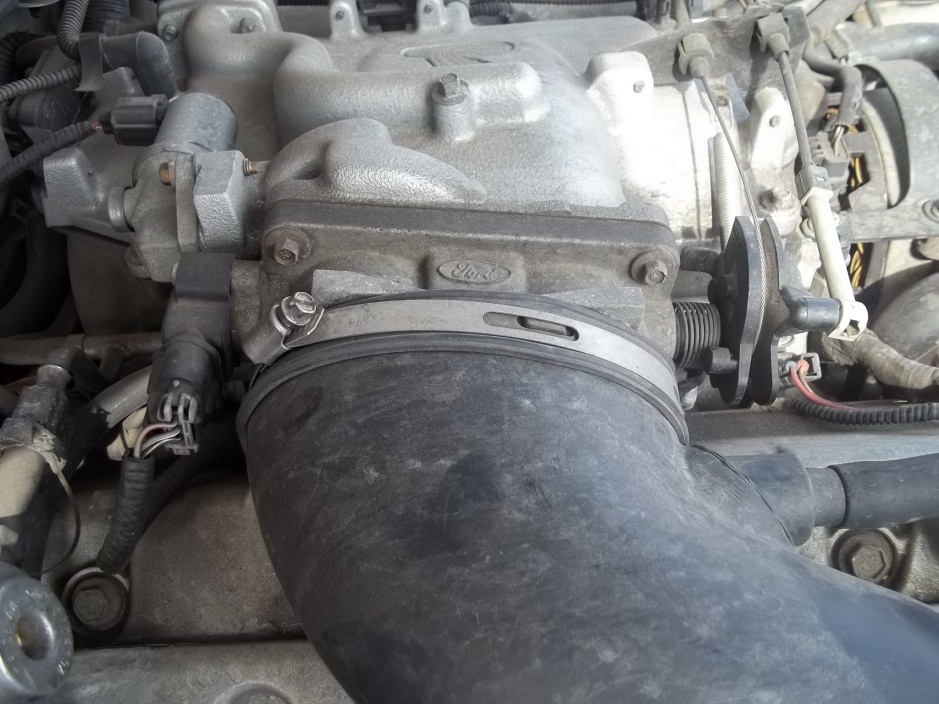

    Guide 37223 Picture 05

  7. Pull the intake straight back off the throttle body.

    Guide 37223 Picture 06

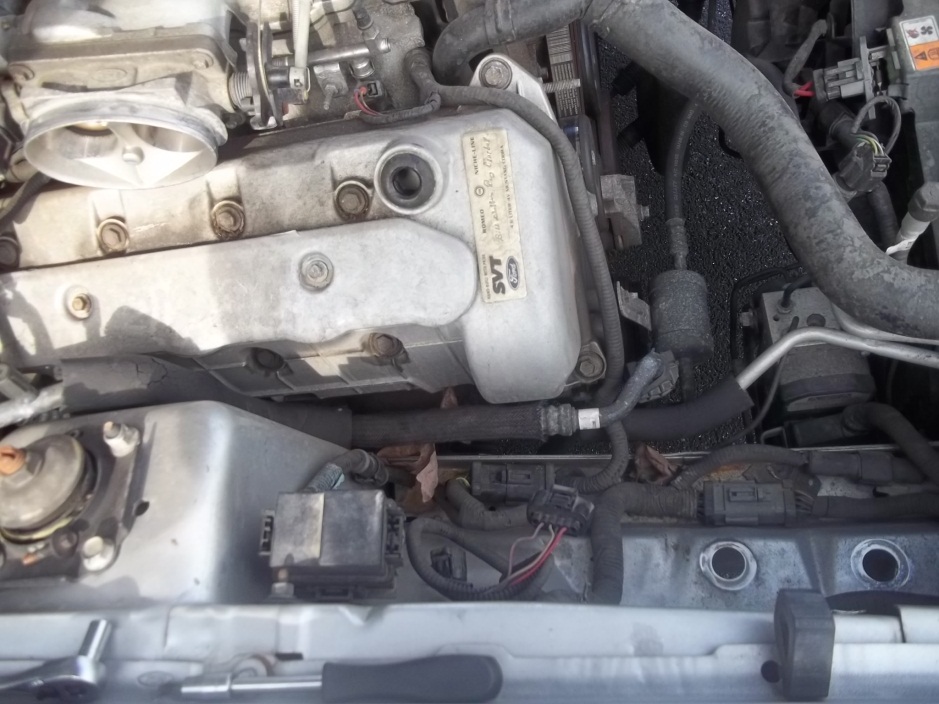

  8. Lift the complete air intake system up out of the car, and set aside. (Note there are 2 rubber inserts under the air filter box)

    Guide 37223 Picture 07

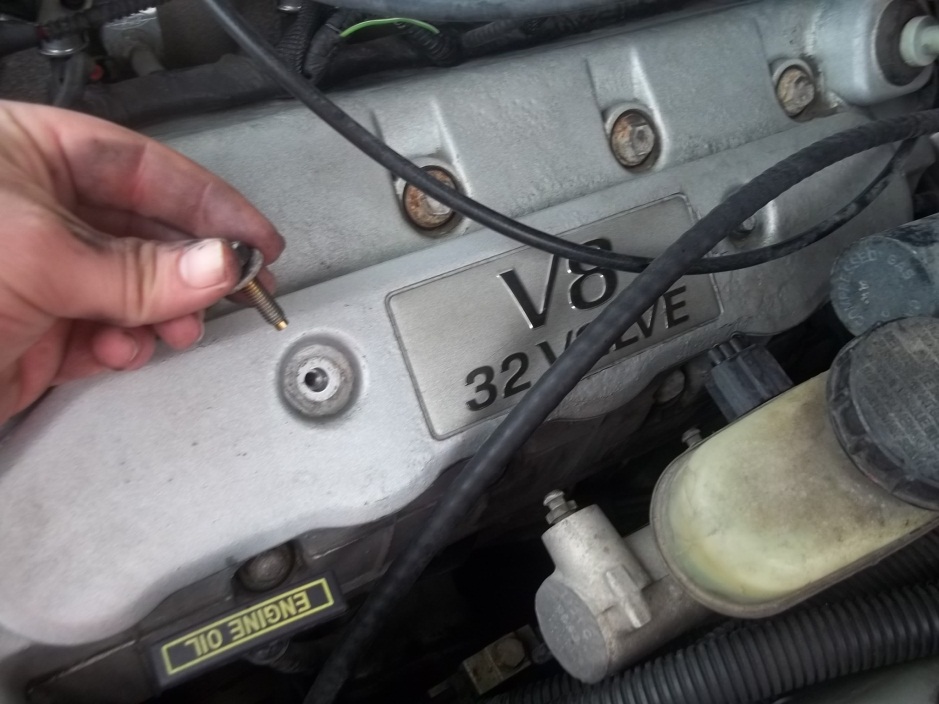

  9. Locate the cover over the coil packs and remove the two 10mm bolts.

    Guide 37223 Picture 08

  10. Remove the cover exposing 4 coil packs.

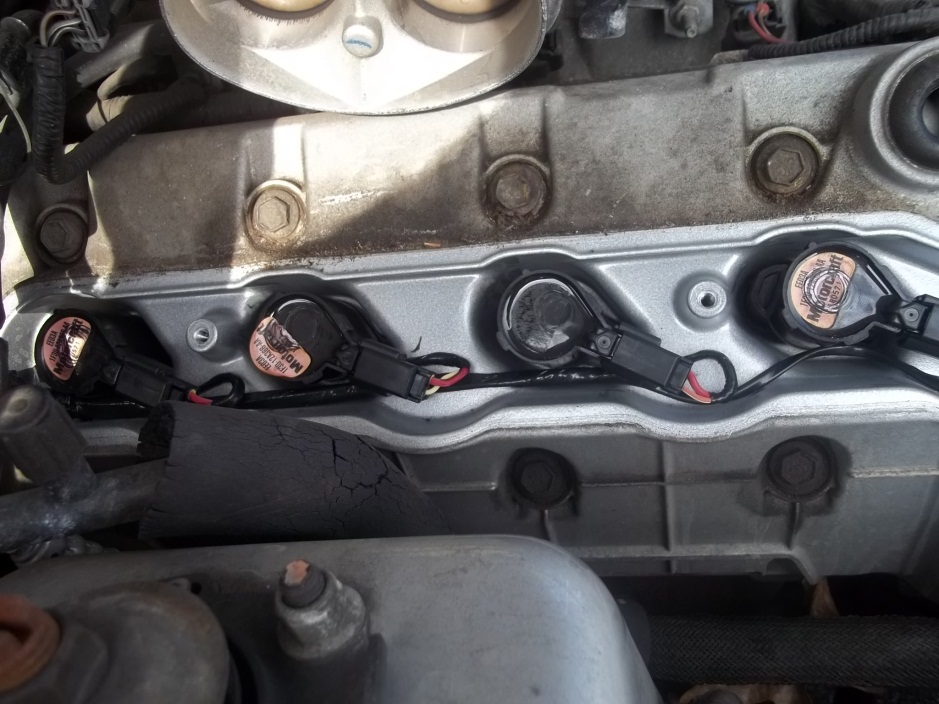

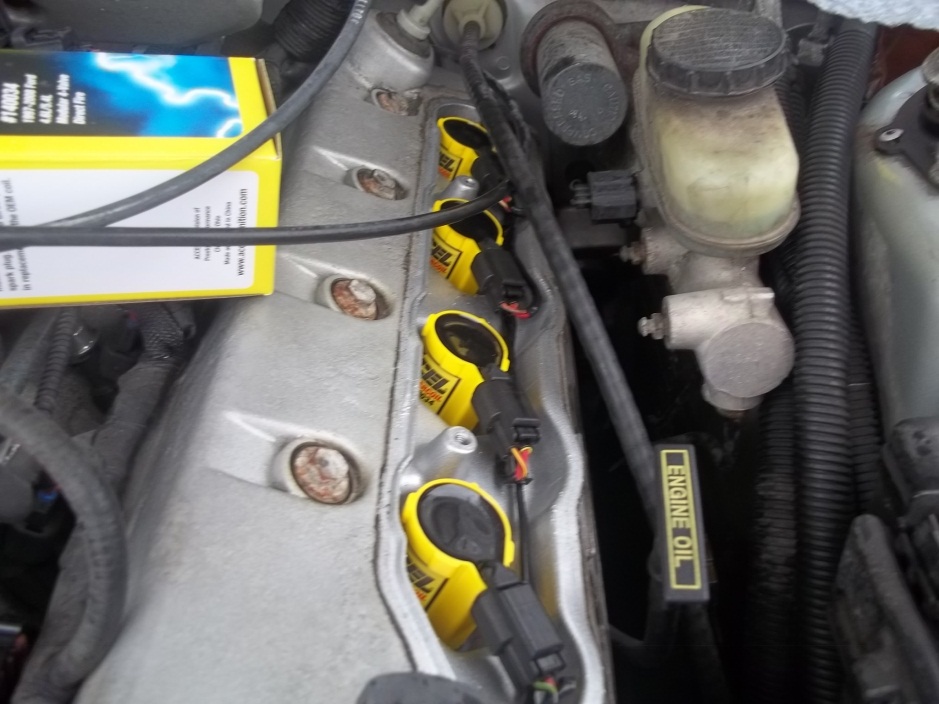

    Guide 37223 Picture 09

  11. Remove the wire connector from the coil pack, by pushing the clip down and pulling back.

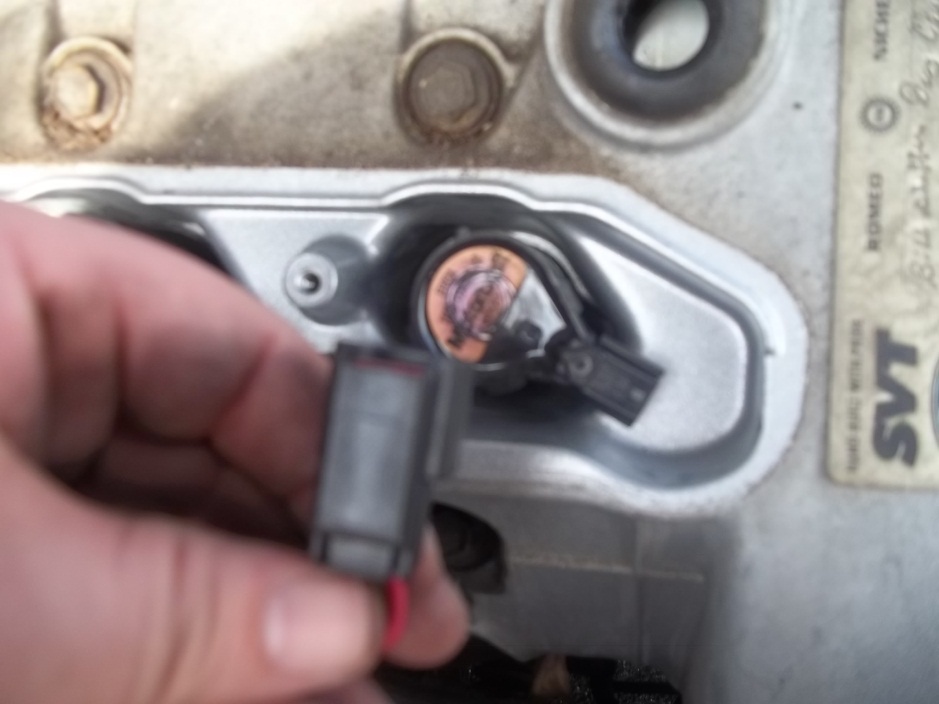

    Guide 37223 Picture 10

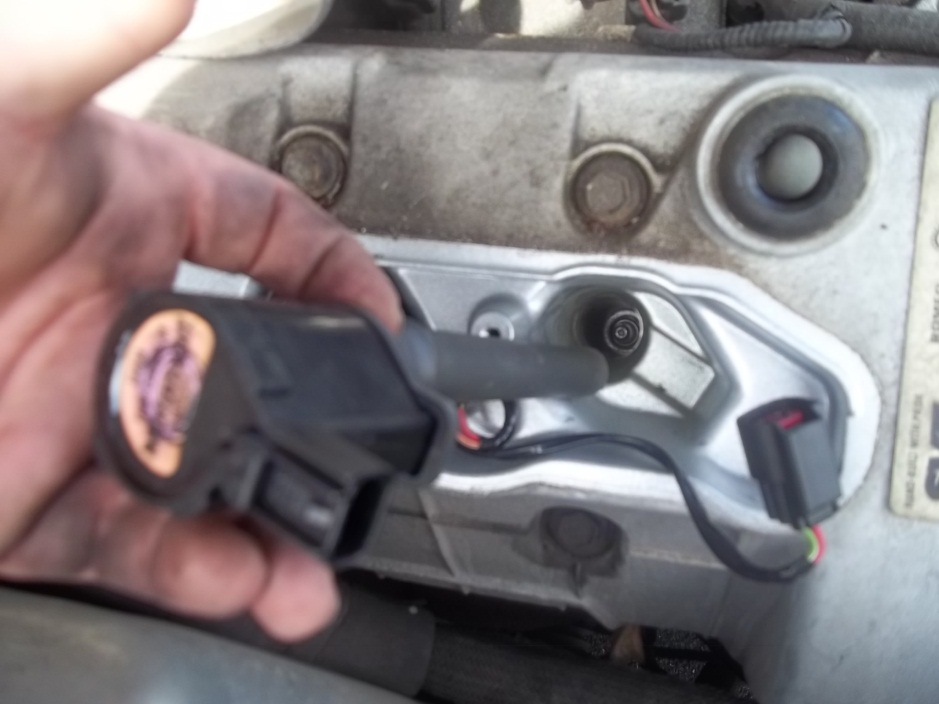

  12. Firmly pull upwards on the old coil pack and remove. (mine fought me quite a bit and didn’t want to release from the spark plug )

    Guide 37223 Picture 11

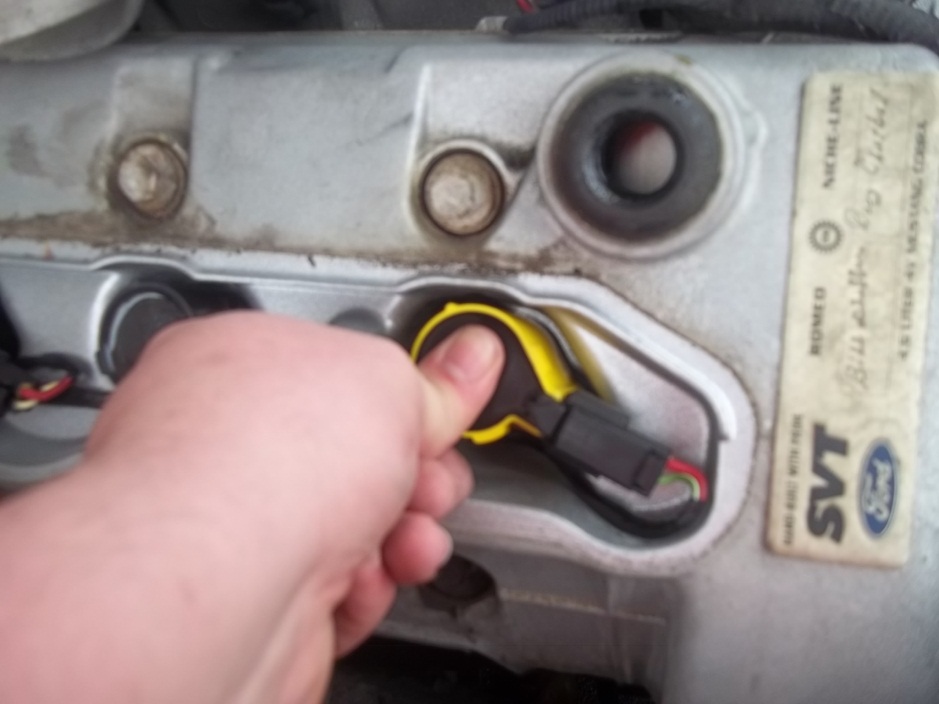

  13. Remove the new Accel super coil from its package. Apply dielectric grease to the boot that makes contact with the spark plug, and also the wire connector. This helps ensure no moister or corrosion.
  14. Connect the wire to the coil pack and seat the coil pack onto the spark plug.

    Guide 37223 Picture 12

  15. Repeat steps 11 to 14 for the rest on this side.

    Guide 37223 Picture 13

  16. Place the cover back over the coil packs and tighten the two 10mm bolts.

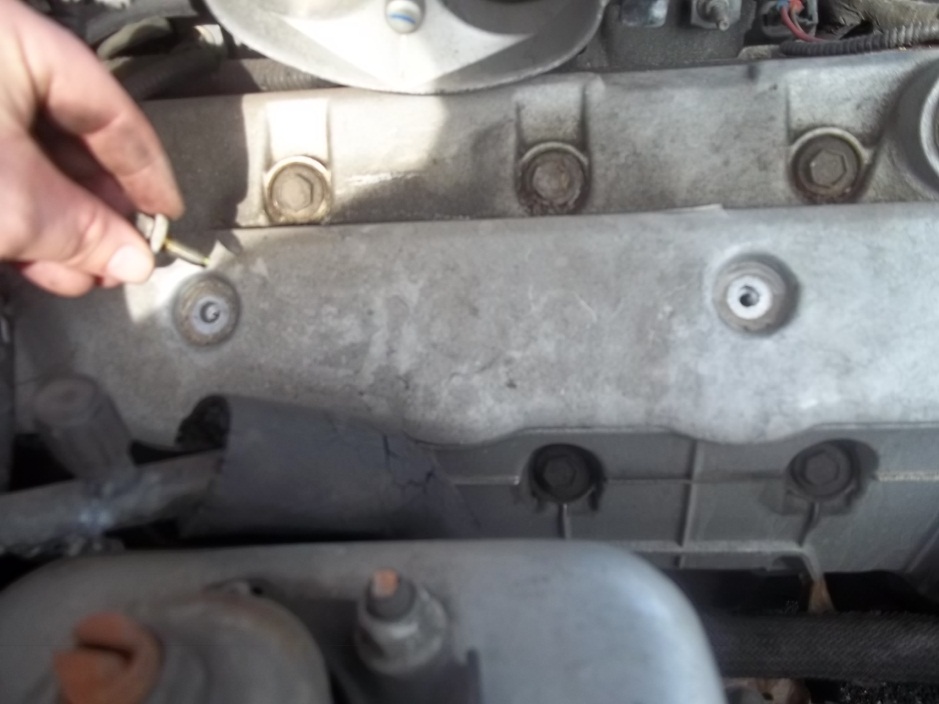

    Guide 37223 Picture 14

  17. Move to the other side and remove the two 10mm bolts.

    Guide 37223 Picture 15

  18. Repeat steps 11 to 14 for all coils on this side.

    Guide 37223 Picture 16

  19. Place the cover back over the coil packs and tighten the two 10mm bolts.

    Guide 37223 Picture 17

  20. Install the air intake, reconnect mass airflow sensor, and the 8mm bolt.

Guide produced by Mike Brandenburg for AmericanMuscle.com.
