2005-2009 Mustang Headlight Splitters - Painted - Installation Instructions

This Mustang Parts Installation Guide Works For

MMD Headlight Splitters - Pre-painted (05-09 GT, V6)DOWNLOAD PDF

Tools Required

Installation Time: 30 Mins

Installation

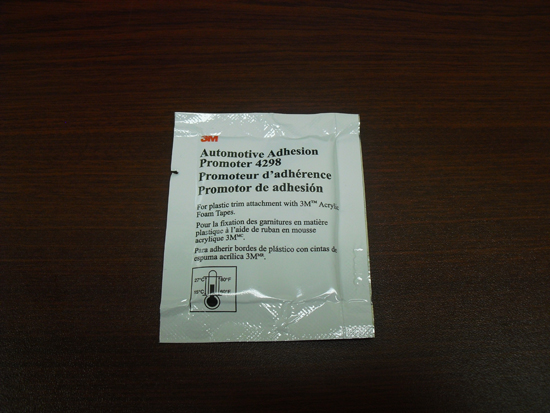

  1. Using supplied 3M Automotive Adhesion Promoter, thoroughly clean rear surface of head light splitter. Using supplied Alcohol Prep Pads, thoroughly surface of head light where splitter will attach. Tip: Center mark of head light can be found by using the small circle in the center of the light used for head light alignment. (Shown in red)

  2. Caution:Do not use 3M Adhesion Promoter on surface of headlight or vehicle's painted surfaces.Headlight Splitters 0509 1

    Headlight Splitters 0509 2

    Headlight Splitters 0509 3

    Headlight Splitters 0509 4

  3. Apply the supplied adhesive tape to the rear surface of the splitter, making sure it does not extend past the edges.
  4. Headlight Splitters 0509 5
  5. Peel backing from adhesive tape on splitter.
  6. Headlight Splitters 0509 6

  7. Lightly place splitter on headlight, making sure to align the slot with body of vehicle as shown below.
  8. Headlight Splitters 0509 7

  9. Once splitter is centered on head light and lines up with body edges, firmly press down where adhesive tape was applied to ensure a proper fit.
  10. Headlight Splitters 0509 8

  11. Repeat all steps for remaining splitter to complete installation.

Installation instructions provided by Stack Racing
