How to Install a Pony Delete Billet Grille for a 1994-1998 Mustang

This Mustang Parts Installation Guide Works For

Polished Pony Delete Billet Grille (94-98 All)Polished Pony Delete Billet Grille (94-98 All)
Fitment Includes:
  • - V6 1994, 1995, 1996, 1997, 1998
  • - GT 1994, 1995, 1996, 1997, 1998
  • - Cobra 1994, 1995, 1996, 1997, 1998
Black Pony Delete Billet Grille (94-98 All)		DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 30 Minutes

Installation

  1. If your car's setup prevents you from accessing the rear of the lower grille, use your preferred method for raising the front of your car to gain access.
  2. An additional set of hands will be very useful for this installation. Center the grille insert in the bumper opening. Note that you may need to bend the billet bars lightly to align with your particular car's fit.
  3. From the back of the grille, slide the two provided clips over the back of the upper lip of the lower grille opening. Space them about 1/3 of the way between the edge of the opening and the center bar.

    Guide 17030 Picture 01

  4. Center your grille. Have your assistant hold the grille in place. From the back of the grille, thread the two provided wires through the front of the grille, wrapping them around the side bars of the grille.

    Guide 17030 Picture 02

  5. Twist the wires until the grille is held securely in place. Trim excess wire with the wire cutters and wrap the ends of the wires in electrical tape to prevent scratching your paint.

    Guide 17030 Picture 03

  6. Check to make sure your grille is centered.
  7. Congratulations, you're finished. Enjoy your new billet grille from Stack Racing.

    Guide 17030 Picture 04

    94-98 Upper Billet Grille (No Pony) Installation

  8. Remove the radiator shroud. Release the clips holding the shroud in place.

    9. Guide 17030 Picture 05

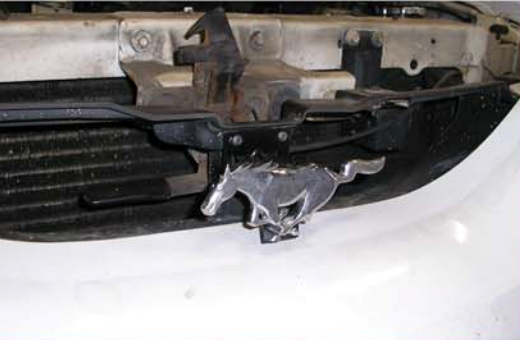

  9. To remove the pony and it's bracket, simply unscrew the 2 Philips head screws that are holding it to the vehicle.

    Guide 17030 Picture 06

  10. Center your new grille in your hood opening, and have your assistant hold the grille while you mark the location of the 3 brackets: One top enter, and 2 lower side brackets. (A metallic maker, nail polish, or a sharp scribe will all work.)

    Guide 17030 Picture 07

  11. Using a 3/16" bit, drill a pilot hole in each of the locations you marked above.

    Guide 17030 Picture 08

  12. Attach grill by using supplied hardware. Tighten using hand tools. DO NOT USE POWER TOOLS IN THIS STEP, as it may damage your Mustang's plastic grill shell. Also, make sure not to over-tighten your hardware.

    NOTICE: If your Mustang was produced between 1-94 and 6-95, in order to prevent interference with the grille and insure easy opening of your hood, you may need to update your hood latch to the later style used in cars provided from 7-95 through your Ford dealership, using part # F6ZZ-16700-AA.
