Mustang Eleanor Style Louvers - Pre-painted (05-11) - Installation Instructions

This Mustang Parts Installation Guide Works For

MMD Eleanor Style Louvers - Pre-painted (05-13)DOWNLOAD PDF

Tools Required

  • Tin Snips or Wire Cutters
  • Tape Measure
Installation Time: 30 Minutes

Installation

  1. Using the supplied 3M Adhesion Promoter, thoroughly wipe down all tabs where double-sided tape will be applied.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 1

    Mustang Eleanor Style Louvers - Pre-painted 05-10 2

  2. Place the pre-cut strips of tape on the areas shown in the below photo.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 3

  3. Using the supplied Alcohol Prep Pads, thoroughly clean the area around the rear quarter windows where the louvers will be placed.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 4

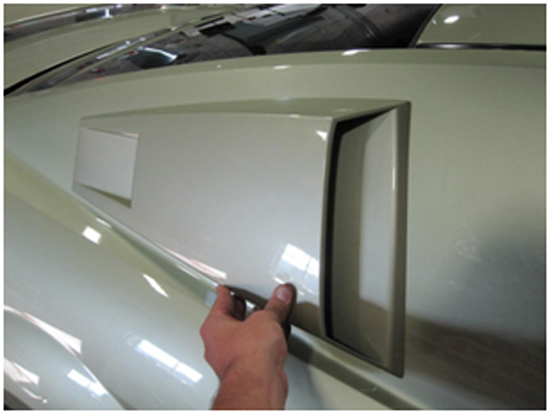

  4. Peel the backing from the tape on the louvers and lightly place them on the vehicle in desired location. Make sure the louver covers the entire window and is parallel with the bodyline. Once they are in the desired location, press down firmly to fully seat the adhesive tape.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 5

    Mustang Eleanor Style Louvers - Pre-painted 05-10 6

Installing the Optional Louver Grilles:
  1. Take the smaller piece of mesh and cut 1” from the end of it as shown.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 7

  2. Make a 90 degree bend in the grille 1” from the edge as shown. Tip: Bending the grille on the edge of a table or workbench that is perfectly square ensures that you get a nice, straight edge.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 8

    Mustang Eleanor Style Louvers - Pre-painted 05-10 9

  3. Place the grille on the louver as shown. Make another 90 degree bend in the grille where it meets the top section of the louver.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 10

    Mustang Eleanor Style Louvers - Pre-painted 05-10 11

  4. Remove the grille from the louver and thoroughly rub the supplied 3M Adhesion Promoter on both the surface of the louver where the grille will attach, and the grille itself. Let the Adhesion Promoter dry for a few seconds, then cut two 3”strips of tape from the 40” roll that is included and place them on the louver as shown below.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 12

    Mustang Eleanor Style Louvers - Pre-painted 05-10 13

  5. Remove the backing from the tape and place the grille on top of the tape as shown. Press down hard to fully seat the grille in the adhesive tape. Once the grille is in place, you may either cut the excess from the edges or simply fold them over as shown. These will not be seen when the louver is installed on the vehicle.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 14

    Mustang Eleanor Style Louvers - Pre-painted 05-10 15

  6. Lay the large grille on a flat surface with the supplied template sitting over top of it. Make cuts using tin snips as shown in the diagram below: These cuts leave a small amount of excess material in the corners that will be trimmed flush in the following step.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 16

  7. Test-fit the grille to the louver and make 90 degree bends as shown. At this point, if there is any excess material in the corners, you may trim it off so that the grille sits flush inside the louver.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 17

  8. Once the grille is properly trimmed and fitted, remove it from the louver and thoroughly apply the supplied 3M Adhesion Promoter to both the surface of the louver where the grille will be applied as well as the grille itself. Cut two 6” strips and two 1” strips of tape from the supplied 40” role. After letting the Adhesion Promoter dry for a few seconds, place the tape strips as shown in the photo below.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 18

    Mustang Eleanor Style Louvers - Pre-painted 05-10 19

  9. Remove the backing from the tape and place the grille on top of the tape as shown. Press down hard to fully seat the grille in the adhesive tape to complete the installation.

    Mustang Eleanor Style Louvers - Pre-painted 05-10 20

Installation instructions provided by Manufacturer
