Mustang Headlights (99-04) - Installation Instructions

This Mustang Parts Installation Guide Works For

Smoked OE Style Headlights (99-04 All)DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 2 Hrs

Installation


Headlight Removal:

  1. Locate the 2 retention clips on the headlight assembly.

    Raxiom Mustang Headlight 99-04 2

  2. Pull the clips straight up to remove. Put the clips in a safe place. They will be re-used to install the new headlight.

    Raxiom Mustang Headlight 99-04 3

  3. Pull the headlight assembly straight out. Locate the wiring and remove from the headlight assembly. The wiring clips have a retention feature that will probably break off. This is not an issue once the new headlights are installed. Remove the yellow bulb from the headlight assembly by gently twisting and pulling out of the assembly. This bulb will be re-used on the new headlights.

    Raxiom Mustang Headlight 99-04 4

New Headlight Installation:
  1. Insert the yellow bulb into the new headlight assembly.

    Raxiom Mustang Headlight 99-04 5

  2. Note the 2 brass alignment pins. These pins will align with holes in the body of the mustang to align the headlight.

    Raxiom Mustang Headlight 99-04 6

  3. Reattach the wiring for the yellow light first.

    Raxiom Mustang Headlight 99-04 7

  4. Then reattach the wiring for the main headlight.

    Raxiom Mustang Headlight 99-04 8

  5. Gently slide the headlight back into position. This may take some manipulation to get the brass alignment pins to seat. Once the brass alignment pins are seated in the matching holes on the mustang body. Gently push the headlight into position and replace the first retention clip.

    Raxiom Mustang Headlight 99-04 9

  6. While maintaining slight pressure on the face of the headlight, install the second retention clip.

    Raxiom Mustang Headlight 99-04 10

  7. The driver's side headlight is now installed. Repeat this procedure for the passenger side.

    Raxiom Mustang Headlight 99-04 11

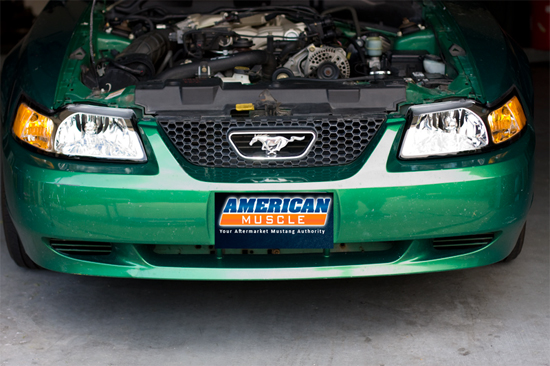

  8. The headlights are now installed.

    Raxiom Mustang Headlight 99-04 12

Installation instructions provided by AmericanMuscle customer Al Onderick 6.9.10
