How to Install Projector Headlights for 1999-2004 Mustang

This Mustang Parts Installation Guide Works For

Raxiom Smoked Projector Headlights - Dual CCFL Halo (99-04 All)Raxiom Smoked Projector Headlights - Dual CCFL Halo (99-04 All) 49113
Fitment Includes:
  • - V6 1999, 2000, 2001, 2002, 2003, 2004
  • - GT 1999, 2000, 2001, 2002, 2003, 2004
  • - Cobra 1999, 2000, 2001, 2002, 2003, 2004
  • - Mach 1 2003, 2004
  • - Bullitt 2001
Raxiom Chrome Projector Headlights - Dual CCFL Halo (99-04 All) 49114		DOWNLOAD PDF

Tools Required

  • Pliers
  • Wire Stripper
Installation Time: 2 Hrs

Installation

  1. Remove the two factory headlight retaining clips.

    Guide 49113 Picture 01

  2. Remove the headlight from the vehicle by unplugging the main headlight and parking light harnesses.

    Guide 49113 Picture 02

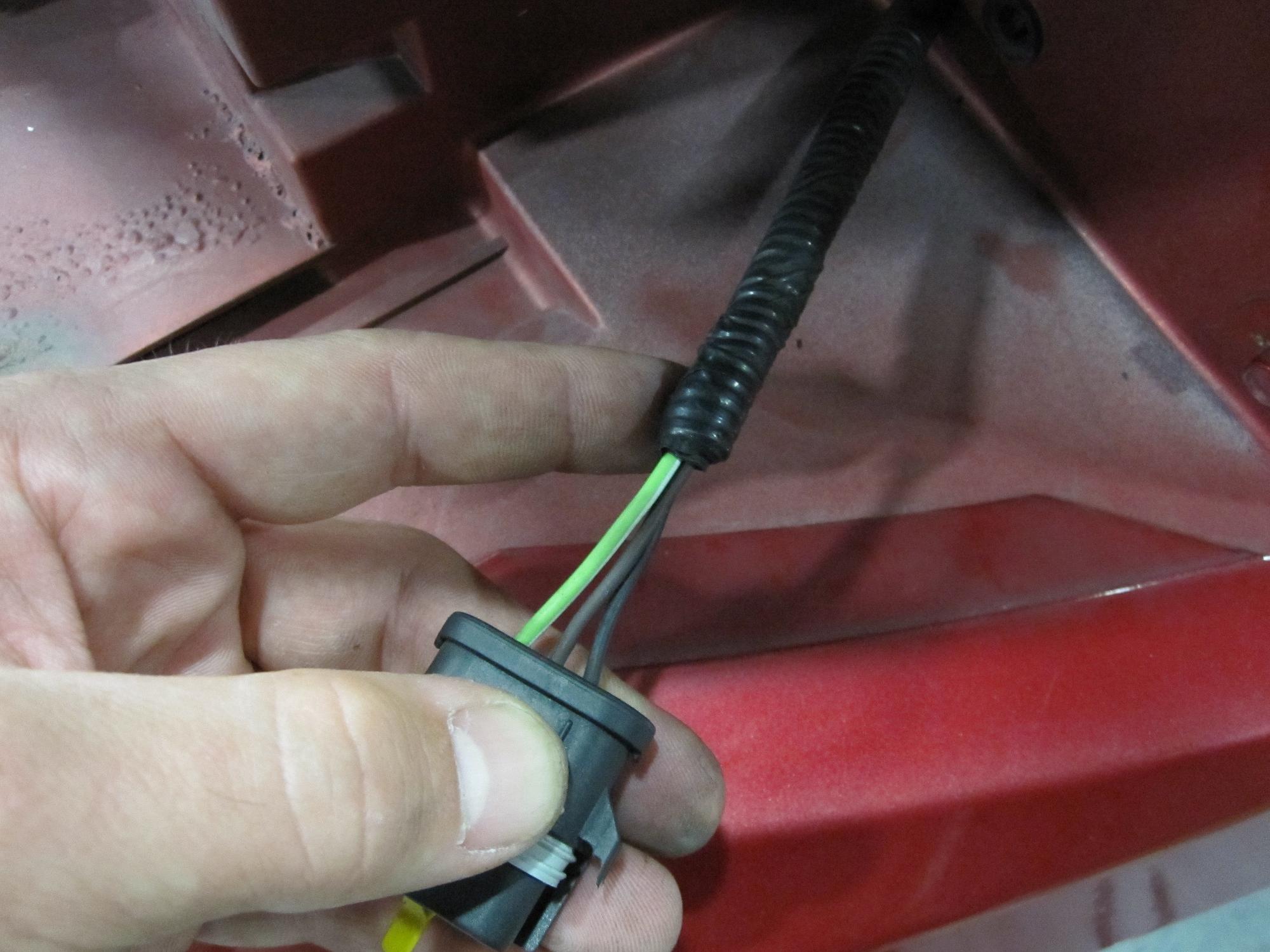

  3. Peel back the electrical tape on the factory parking light harness to expose the three wires; black, brown, and green w/white stripe.

    Guide 49113 Picture 03

  4. Using the supplied scotch lock connectors, splice the black wire from the new headlight to the black wire from the parking bulb harness and the blue wire from the new headlight to the brown wire from the parking bulb harness as shown. You may have to strip more insulation from the blue and black wires from the headlight to get a good connection.

    Guide 49113 Picture 04

  5. Remove the parking bulb from your old headlight and place it in the new headlight. Install the new headlight onto the vehicle, making sure to connect both the headlight and parking light harnesses. Once the new headlight is aligned in the bumper, re-install the retaining clips you removed in Step 1 to complete the installation.

    Guide 49113 Picture 05

    Guide 49113 Picture 06

  6. Make sure the lights work as follows: Parking Lights ON:

    Guide 49113 Picture 07

    Headlights ON:

    Guide 49113 Picture 08

    High Beams ON:

    Guide 49113 Picture 09
