Steeda Complete Cold Air Intake Kit (05-09 GT) - Installation Instructions

This Mustang Parts Installation Guide Works For

Steeda Cold Air Intake (05-09 GT)Steeda Cold Air Intake (05-09 GT) 555-3131
Fitment Includes:
  • - GT 2005, 2006, 2007, 2008, 2009
Steeda Cold Air Intake - Carbon Fiber (05-09 GT) 555-3139Steeda Carbon Fiber CAI and SF3 Tuner (05-09 GT) 16182||555-3139||38018||3015Steeda CAI and SF3 Tuner (05-09 GT) 16160||555-3131||38018||3015		DOWNLOAD PDF

Tools Required

  • Flashlight (makes it easier to see what you are doing).
  • Flat head screwdrivers (medium head are best).
  • Adjustable wrench & adjustable grip pliers.
  • Needle-nosed pliers.
  • 10mm wrench.
  • 10mm socket wrench.
  • 1 small (3/32) and 1 medium allen wrench.
  • Adjustable grip pliers.
  • 20T Torx wrench.
Installation Time: 60 Mins

Installation

Steeda CAI 0509 1


REMOVAL of the Factor Air Filter Element and Hose:

  1. Disconnect the mass air meter wiring harnessthat is connected to the inlet tube, next to the air filter. There is a red tab on the connector. Push the red tab away from the inlet tube. You will now be able to pull the connector from the inlet tube.

    Steeda CAI 0509 6

    Steeda CAI 0509 7

  2. Remove the one (1) bolt that holds the factory air filter box to the fender.Use a 10mm socket wrench. This bolt will NOT be reused during install.

    Steeda CAI 0509 8

  3. Loosen the hose clamp that secures the factory intake tube to the air filter.Remove the factory air filter. Save the 2 rubber grommets on the bottom of the factory air filter box for reinstallation.

    Steeda CAI 0509 9

    Steeda CAI 0509 10

  4. Remove the mass air meter sensorthat is attached to the factory air filter box cover (that you just removed from the car) to reuse with the new cold air intake. Use a 20T Torx wrench to remove the 2 screws. The 2 screws will NOT be reused for this installation. Set aside the stock mass air meter sensor for later installation. Be careful not to drop or bang this part.

    Steeda CAI 0509 11

    Steeda CAI 0509 12

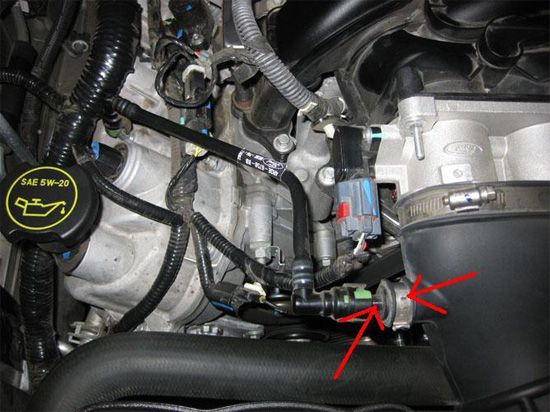

  5. Remove the factory vacuum line from the stock intake tube.First, remove the hose clamp. Use a flat head screwdriver to pry the clamp apart. This can be removed completely, as you will NOT be reusing this hose clamp during the installation. Once you have the hose clamp removed, gently pull the plastic reducer out of the rubber tube. (Note: You may need to move to step 6 if the reducer is not coming out easily. Removing the inlet tube from the throttle body may provide some additional leverage).

    Steeda CAI 0509 13

  6. Loosen the hose clamp that secures the inlet hose to the throttle body.You can use either a flat head screwdriver or an 8mm socket wrench. Remove from the car.

    Steeda CAI 0509 14

INSTALLATION of the Steeda Cold Air Intake
  1. Install the long silicone hose on the small opening of the inlet tube(the air filter side). You will need to use the smaller (#64) of the 2 hose clamps to secure the hose to the inlet tube.Install the short silicone hose on the large opening of the inlet tube(the throttle body side). Use the larger hose clamps (#72) for secure the hose to the inlet tube. Only secure the hose clamp to the inlet tube. Loosely fit the 2nd hose clamp that will attach to the throttle body.

    Steeda CAI 0509 15

    Steeda CAI 0509 16

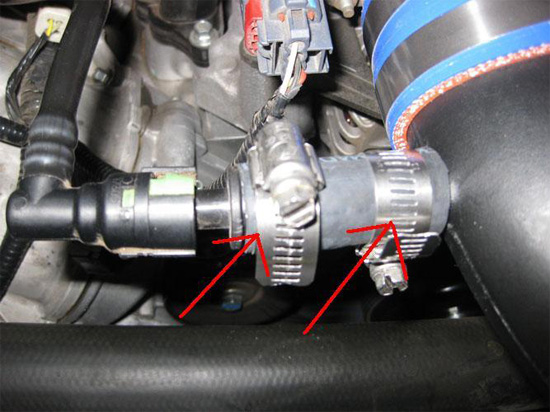

  2. Install the short piece of 5/8” hosebetween the factory vacuum line and the stock intake tube. Use the two small hose clamps and secure it into place. (Note: some recommend switching step 2 with 3 first. I found it easier doing it this way).

    Steeda CAI 0509 17

  3. Install the intake tube to the throttle bodyand tighten securely. You want to make sure you have no air leaks as you now attach everything.

    Steeda CAI 0509 18

  4. Assemble the billet meter to the air shield and to the air guide(circular piece of plastic). Remove all plastic protective coating from air shield. Make sure to put the provided gasket in between the meter and the air shield before securing. Also make sure the hole for the factory air sensor is pointing towards the back of the car, as you will be reinstalling the mass air sensor meter next.

    Steeda CAI 0509 19

  5. Install the factory mass air meter sensor.Use the 2 small screws provided to secure the stock mass air meter sensor to the billet aluminum meter body. You will need to use a 20T Torx wrench. Make sure to install the sensor with the arrow for air flow pointing towards the throttle body. (See image above).
  6. Install the edge molding onto the air shield.Start on the bottom and work your way around. You can use a soft rubber mallet to tap into place if you like. You can use your hands to crimp it tight, or use a pair of adjustable pliers. I also found it useful to not secure it tightly at the top, until after you install the air filter element.

    Steeda CAI 0509 20

  7. Install the air shield bracket.Loosen the bolt securing the ABS distribution box (driver side front). Slide the fork end of the bracket in between bolt head and rubber washer. Leave the bolt loose for now.

    Steeda CAI 0509 21

    Steeda CAI 0509 22

  8. Install the cold air filter assembly(billet meter, air shield) into the factory location in the car. Insert the 2 studs on the bottom of the air shield into the stock location. Make sure the rubber grommets are attached and the studs are inserted through the grommets.

    Steeda CAI 0509 23

  9. Attach the air meter to the air inletand secure with hose clamp.

    Steeda CAI 0509 24

  10. Attach the wiring harness for the mass air meter sensor.

    Steeda CAI 0509 25

  11. Install Air filter element.Secure the air filter using the supplied large hose clamp.

    Steeda CAI 0509 26

  12. Secure air shield using air shield bracket.Secure the bracket to the bottom of the air shield. There is already a factory drilled hole. Secure the nut on the air shield end, and the bolt on the ABS distribution box as shown in step7.

    Steeda CAI 0509 27

  13. Make sure to check over all connections.Also be sure to remove any tools materials inside of the engine compartment. This particular CAI comes with manufacture decals, that you may want to include on the air shield. Below is a completed picture of the project.

    Steeda CAI 0509 28

  14. Congratulations! You have installed your new cold air intake! Enjoy!
  15. Remember, you MUST now tune your car BEFORE running it

Installation instructions provided by AmericanMuscle customer Al Frear 2.19.10
