How to Install a C&L Cold Air Intake for a 2010 Mustang GT

This Mustang Parts Installation Guide Works For

C&L Cold Air Intake (10 GT)C&L Cold Air Intake (10 GT) 10699-10
Fitment Includes:
  • - GT 2010
C&L CAI and Bama Tuner (10 GT)		DOWNLOAD PDF

Tools Required

  • 10mm & 12mm Socket
  • Extension and Ratchet
  • 12mm Wrench
  • Torx 20 Driver
  • Phillipshead Screwdriver
  • Flat Head Screwdriver
  • Plyers
  • Razorblade or sharp knife

Installation

Guide 98419 Picture 01

Figure 1

  1. Unhook MAF sensor wire harness from sensor and all around the stock air box.(Figure 1)
  2. Unhook the cabin sound tube by using plyers to press together the clamp to pull the tube out.(Figure 1)

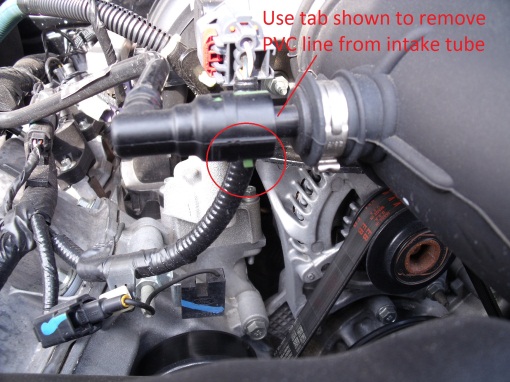

  3. Unhook the PVC line to the left of the stock intake tube by pushing the green tab on the bottom of the connector towards the rear of the vehicle and pulling the connector away from the tube.(Figure 2)

    Guide 98419 Picture 02

    Figure 2

  4. Remove the stock intake by loosening the clamp at the throttle body and removing the 10mm bolt holding down the air box. The whole stock intake assembly should lift out of the engine bay at this point.(Figure 3)

    Guide 98419 Picture 03

    Figure 3

  5. Remove front air inlet coming from the grille. Use flat screw driver to undo the 4 tabs (1 on each side). Once you get 2 or more give it a good tug straight out and it will pop off. You will need to trim the rubber fitting if you would like it to fit nicely. But trimming is not needed. You may also cut a hole in the bottom center of the same fitting for the bolt that comes with the kit to hold the bottom of the heat shield in place.(Figure 4. This picture is of the final trim with bolt in place)

    Guide 98419 Picture 04

    Figure 4

  6. Secure the upper part of the heat shield to the fender where the stock assembly was secured. Same bolt is used from the stock assembly.

    Guide 98419 Picture 05

    Figure 5

  7. Install your new C&L intake tube onto the throttle body and tighten the clamp to secure in place. At this time you can reconnect the PVC line to the left of the tube. It will just pop back into place.

  8. Reconnect the cabin sound tube to the new intake tube and tighten clamp to secure in place.

  9. Place the MAF sensor into the slot in the intake tube and secure using screw that come in the kit (screws should be in place on the tube when you receive it). DO NOT use the screws from the stock intake to connect the MAF sensor to the new tube.

    (Steps 7-9 final product shown in figure 6 to the right)

    Guide 98419 Picture 06

    Figure 6

  10. Install the C&L air filter to the intake tube and tighten the clamp to secure in place.

    (Figure 7)

  11. At this point you may want to recheck all wiring connections, clamps, and any other items you may have loosened or removed to make sure they are secure and tight.

    Guide 98419 Picture 07

    Figure 7

  12. As stated in the warning at the beginning of these instructions, a tune is required for this intake! No tune may result in engine damage! If you do not already have a power flash tuner, return to Americanmuscle.com and purchase one before you drive your Mustang with this new intake!
  13. Enjoy the new power you have been given from your C&L Cold Air Intake!
