How to Install a Short Throw Shifter for a T5, T45 and TR3650 Ford Mustang Transmission

This Mustang Parts Installation Guide Works For

SR Performance Short Throw Shifter - T-5/T-45 (82-Early 01 V8; 93-99 Cobra; 94-04 V6)SR Performance Short Throw Shifter - T-5/T-45 (82-Early 01 V8; 93-99 Cobra; 94-04 V6)
Fitment Includes:
  • - V6 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
  • - GT 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
  • - Cobra 1994, 1995, 1996, 1997, 1998, 1999
  • - Bullitt 2001
  • - Foxbody 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
SR Performance Short Throw Shifter - TR-3650 (01 Cobra; Late 01-04 GT, Mach 1)		DOWNLOAD PDF

Tools Required

  • 3/8” Ratchet & Extensions
  • 8mm, 10mm, & 13mm sockets
  • Allen Key Set
Installation Time: 2 Hrs

Installation

  1. Remove factory shift knob and shift bezel by gently prying up on the sides. If your vehicle is equipped with a lighter and/or traction control, disconnect the harnesses from the bezel before completely removing it from the vehicle.

    Guide 41163 Picture 01

    Guide 41163 Picture 02

  2. Loosen the factory shift boot by removing the (4) 8mm nuts that hold it to the console.

    Guide 41163 Picture 03

  3. Lift up on the boot to expose the (4) 13mm nuts that hold the factory shifter to the transmission and remove them.

    Guide 41163 Picture 04

    Guide 41163 Picture 05

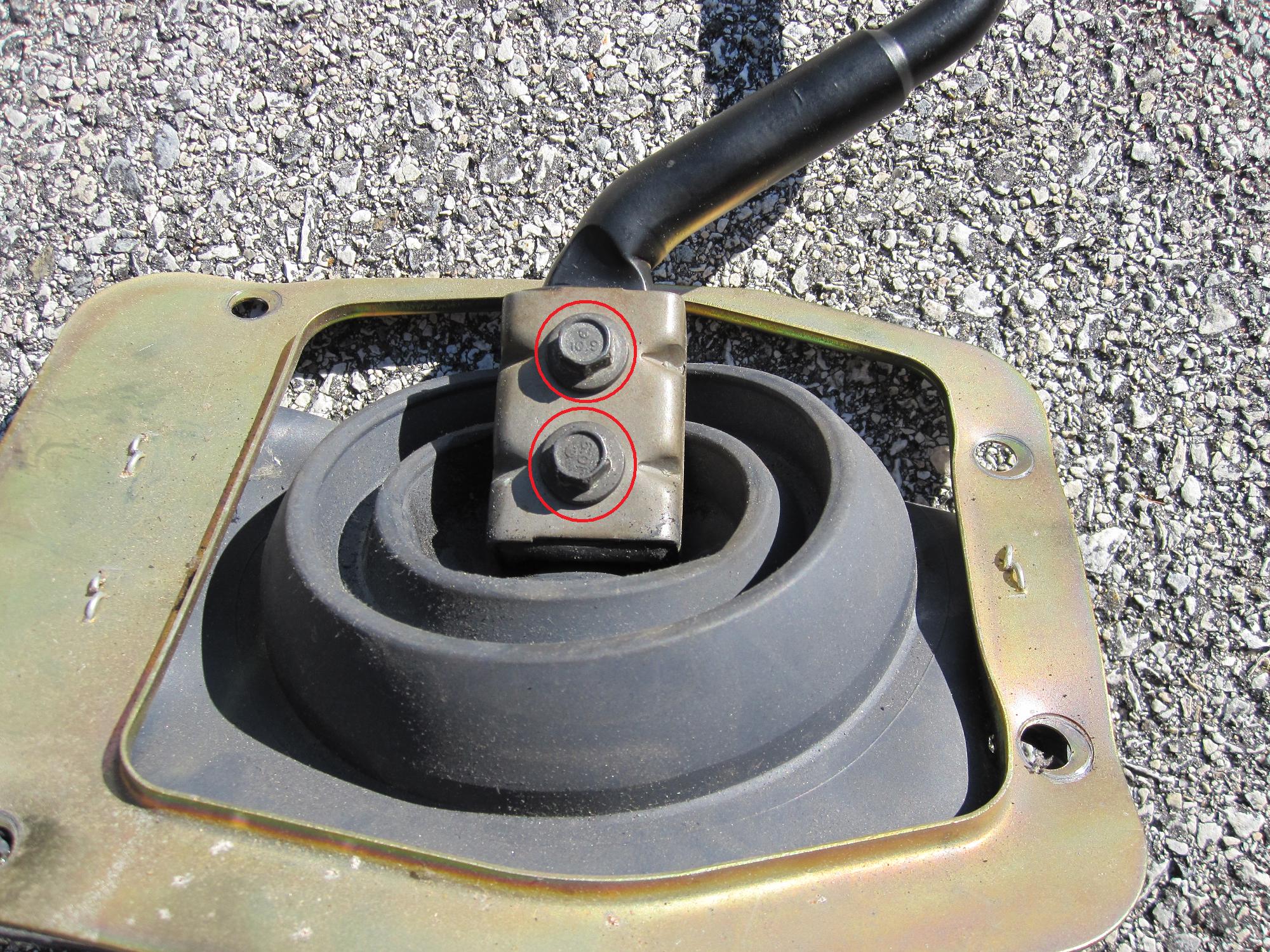

  4. Remove the whole shifter assembly and boot from the vehicle. Remove the (2) 10mm bolts that hold the factory shifter handle to the base and remove the handle. This will allow you to remove the rubber boot.

    Guide 41163 Picture 06

    Guide 41163 Picture 07

  5. Using an allen key, remove the handle from your new shifter and slide the rubber boot over top of it as shown. Re-install the allen head bolts and tighten.

    Guide 41163 Picture 08

    Guide 41163 Picture 09

  6. Scrape off any left over RTV left on the shifter housing of the transmission and install a new gasket or a thin bead of black RTV silicone.***If you have a TR-3650 transmission, make sure to transfer the plastic bushings from the end of the shifter to your new shifter, or your transmission will not operate properly***

    Guide 41163 Picture 10

    Guide 41163 Picture 11

  7. Place your new shifter assembly on top of the transmission and use the supplied 13mm bolts to secure it to the transmission. Adjust your shifter using the stop nuts and bolts so that the transmission goes freely and completely into all gears. Leave about ¼” between the stop bolt and the shifter when the shifter is fully engaged in each gear. The shifter should not hit the bolts during normal operation. They are there to prevent transmission damage under hard shifting.

    Guide 41163 Picture 12

    Guide 41163 Picture 13

  8. Use the factory 8mm bolts to secure the shift boot to the console.

    Guide 41163 Picture 14

  9. Re-install the factory shift bezel by pushing down on the clip and plug in any electrical harnesses that were disconnected in Step 1. Re-install your shift knob to complete the installation.

    Guide 41163 Picture 15
