Stack Racing V6 Cold Air Intake (05-09 V6) - Installation Instructions

This Mustang Parts Installation Guide Works For

SR Performance Cold Air Intake (05-09 V6)SR Performance Cold Air Intake (05-09 V6)
Fitment Includes:
  • - V6 2005, 2006, 2007, 2008, 2009
DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 60 Mins

Installation

  1. Disconnect the battery. Remove the factory intake and air box.
  2. Remove the two screws retaining the MAF sensor with T20 Torx tool supplied and carefully remove the MAF sensor.

    Stack Racing V6 Cold Air Intake 05-09 V6 1

  3. Install the supplied rubber mount on to the heat shield using one each of the supplied washers and locknuts. Install the rubber edge trim around the pipe opening as shown.

    Stack Racing V6 Cold Air Intake 05-09 V6 2

  4. Install the heat shield into the engine carefully sliding it under the AC lines and aligning the two mounting arms with the holes in the fender and upper ABS mount. Secure using the previously removed bolt for the ABS housing and supplied M6 bolt and washer. For non-ABS vehicles use and supplied M8 washer, bolt and nut in area circled above.

    Stack Racing V6 Cold Air Intake 05-09 V6 3

  5. Install the lower heat shield mount by using the previously removed lower ABS mount bolt. Use the supplied M6 bolt, nut, and washer to secure the lower mount to the heat shield. For non-ABS vehicles use supplied M8 washer, bolt and nut in area circled above.

    Stack Racing V6 Cold Air Intake 05-09 V6 4

  6. Plug the ABS wiring harness that was removed in Step 4 back into the ABS control module.

    Stack Racing V6 Cold Air Intake 05-09 V6 5

  7. Check to be sure that the intake pipe is clear from debris. Install the MAF Sensor using the supplied mounting screws. Use Caution to avoid damaging the o-ring.

    Stack Racing V6 Cold Air Intake 05-09 V6 6

  8. Install the supplied adapter hose onto the throttle body as shown using the hose clamp.

    Stack Racing V6 Cold Air Intake 05-09 V6 7

  9. Align the mounting bracket with the rubber mount on the heat shield. Install the washer and nut onto the rubber mount. Leave slightly loose for adjustment.

    Stack Racing V6 Cold Air Intake 05-09 V6 8

  10. Attach the stock plastic breather hose by pushing it over the aluminum nipple on the intake pipe until it snaps into place.

    Stack Racing V6 Cold Air Intake 05-09 V6 9

  11. Install the air filter on to the end of the inlet tube. Push the filter over the inlet pipe until the stop in the filter is reached. Then install one hose clamp to secure the filter onto the inlet pipe.

    Stack Racing V6 Cold Air Intake 05-09 V6 10

  12. Cut electrical tape to locate MAF sensor wires.

    Stack Racing V6 Cold Air Intake 05-09 V6 11

  13. Pull MAF sensor plug towards MAF sensor.

    Stack Racing V6 Cold Air Intake 05-09 V6 12

  14. Place factory silt covering over wires as indicated in the picture above.

    Stack Racing V6 Cold Air Intake 05-09 V6 13

  15. Place supplied slit covering over remaining two wires as indicated in the picture above.

    Stack Racing V6 Cold Air Intake 05-09 V6 14

  16. Wrap factory slit covering with electrical tape to secure wires from potential damage.

    Stack Racing V6 Cold Air Intake 05-09 V6 15

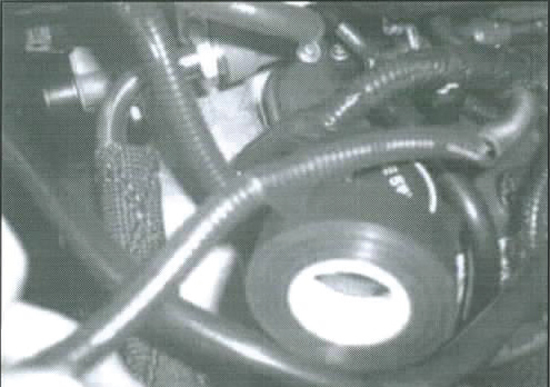

  17. Wrap slit covering with electrical tape to secure wires.

    Stack Racing V6 Cold Air Intake 05-09 V6 16

  18. Plug MAF sensor into the pipe.

    Stack Racing V6 Cold Air Intake 05-09 V6 17

  19. Reconnect the battery. Start the car and check for any signs of leaks.

    Stack Racing V6 Cold Air Intake 05-09 V6 18

Installation instructions provided by Stack Racing
