K&N Mustang FIPK Air Intake Kit (05-09 GT) - Installation Instructions

This Mustang Parts Installation Guide Works For

K&N FIPK Cold Air Intake (05-09 GT)DOWNLOAD PDF

Tools Required

  • Flat Blade Screwdriver
  • Ratchet
  • Extension
  • 8mm Socket
  • 10mm Socket
  • 10mm Wrench
  • 4mm Allen Wrench
  • 2.5mm Allen Wrench
  • Needle Nose Pliers
Installation Time: 60 Mins

Installation

  1. Turn the ignition OFF and disconnect the vehicle's negative battery cable.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 1

  2. Release the red locking tab and then disconnect the mass air sensor electrical connection.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 2

  3. Rotate the green locking tab clockwise and then disconnect the crank case breather hose from the valve cover as show.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 3

  4. Loosen the hose clamps, which secure the intake tube to the throttle body and air box, then remove the intake tube as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 4

  5. Remove the air box mounting bolt shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 5

  6. Remove the air box assembly as show. K&N recommends customers do not discard factory air intake.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 6

  7. Install the saddle clamp onto the tube mounting bracket as shown with the provided hardware.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 7

  8. Remove the two valve cover bolts shown. These bolts will be reused.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 8

  9. Install the valve cover bolts removed in step #8 into the tube mounting bracket as shown passing through the key hole portion and then slide the bolts to the end of the slots.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 9

  10. Install the tube-mounting bracket onto the valve cover as shown and secure with the stock hardware removed in step #8.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 10

  11. Install the "L" bracket onto the rear of the heat shield as shown with the provided hardware.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 11

  12. Install the "L" bracket onto the front of the heat shield shown with the provided hardware.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 12

  13. Install the edge trim onto the head shield as shown. Some trimming of the edge trim may be necessary for proper fit.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 13

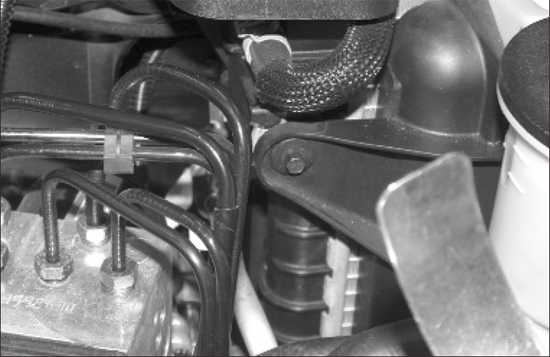

  14. Remove the radiator fan shroud mounting bolt as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 14

  15. Install the heat shield and secure with the provided hardware as shown. The forward mounting bracket will mount to the radiator fan shroud mounting location and the rear bracket will mount to the air box mounting location.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 15

  16. Remove the mass air sensor from the factory air box with the T20 "Torx" wrench provided.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 16

  17. Install the provided gasket to the back of the K&N mass air sensor adaptor plate as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 17

  18. Install the mass air sensor into the K&N mass air sensor adaptor and secure with provided hardware.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 18

  19. Install the mass air sensor assembly into the K&N intake tube and secure with the provided hardware. Be sure the opening in the mass air sensor is towards the inlet end of the tube.

    K&N Mustang FIPK Air Intake Kit 05-09 GT

  20. Install the silicone hose onto the throttle body with the provided hose clamp as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 20

  21. Install the K&N intake tube into the silicone hose at the throttle body and onto the saddle bracket assembly then secure with the provided hose clamps as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 21

  22. Install the supplied vent hose onto the vent port on the valve cover and then onto the K&N intake tube as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 22

  23. Vehicles that come with Hydrocarbon trap, use a pair of needle nose pliers to remove the Hydrocarbon trap from the stock intake tube as shown. The Hydrocarbon trap coating is very fragile; care should be taken during removal as not to damage it.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 23

  24. Vehicles that come equipped with Hydrocarbon trap, place the Hydrocarbon trap into the filter adapter as shown. The intake system is designed to use the factory Hydrocarbon trap. Failure to use the Hydrocarbon trap will result in poor performance and possible engine damage may result.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 24

  25. Install the silicone hose onto the filter adapter and secure with the provided hose clamp as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 25

  26. Install the air filter onto the air filter adapter and secure with the provided hose clamp as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 26

  27. Install the air filter assembly onto the K&N intake tube as shown and secure with the provided hose clamp.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 27

  28. Reconnect the mass air sensor electrical connection as shown.

    K&N Mustang FIPK Air Intake Kit 05-09 GT 28

  29. Reconnect the vehicle's negative battery cable. Double check to make sure everything is tight and properly positioned before starting the vehicle.
  30. The C.A.R.B exemption sticker (attached) must be visible under the hood so that an emissions inspector can see it when the vehicle is required to be tested for emissions. California requires testing every two years, other states may vary.
  31. It will be necessary for all K&N Performance Air Intake Kits to be checked periodically for realignment, clearance and tightening of all connections. Failure to follow the above instructions or proper maintenance may void warranty.

Installation instructions provided by K&N Engineering
